German Armored Forces & Vehicles

38cm Raketenwerfer 61 L/5.4 [Strumtiger]

NCY-152

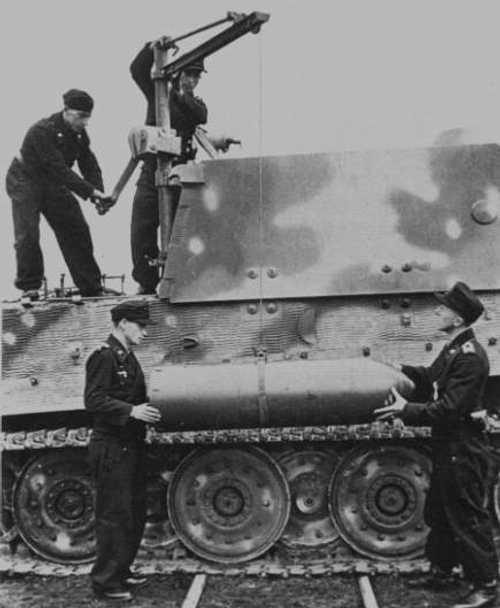

The Sturmtiger was armed with a short-barreled 38cm Raketenwerfer 61 L/5.4, breech-loading rocket launcher/mortar. The RW 61 launcher fired short-range (4,600 to 6,000 meters, or 2,850 to 3,720 yards) high-explosive rocket-propelled projectiles. The launcher was fitted with a PaK Zielfernrohr 3 x 8 telescopic sight. Each projec-tile was almost 1.5m (five feet) long and weighed 345 to 351kg (759 to 772 pounds). Two types of ammunition were available-high-explosive Raketen Sprenggranate 4581 (with a 125kg, or 275 pound, explosive charge) and shaped-charge Raketen Hohladungsgranate 4582 for use against fortifications. The shaped-charge round could penetrate up 2.5m (8 feet) of reinforced concrete. The Sturmtiger main arma-ment was originally developed by Rheinmetall-Borsig in Dusseldorf from an anti-submarine depth charge launcher developed for the Kriegsmarine.
